Custom Lithium Ion
Battery Packs
We
custom build lithium ion packs to your specification
Pricing
as at October 24
|
|
Click here for DIY
to Subscribe to our Mailing List for Specials |
|
Lithium ion battery packs
have a high power storage density and are ideal for application where
weight is an issue. A 18650 lithium cell typically weighs 50gms.
A typical 12v 4Ah lead acid battery weighs 1.5kg. A equivalent is our
model AK3S2SJ lithium ion which weighs 300gms.
Lithium ion has a low self discharge rate so an unused fully charged
pack will still have full charge after 6 or more months!
Some of
the more popular builds are noted below:- |
|

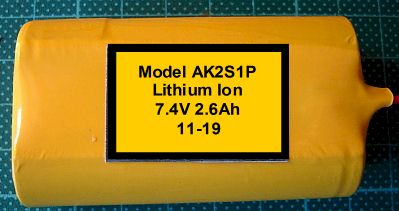

Model
AK2S1PSJ |
Price R454 Incl VAT
|
Features |
|
Nominal Voltage |
7.4V |
|
Capacity |
3000mAh |
|
Max Voltage |
8.4V |
|
Min Voltage |
5.6V |
|
Internal Protection Fuse |
5A |
|
Charge Rate |
Max 3A |
|
Discharge Rate |
Max 2.5A |
|
Short Circuit Protection |
Max 3A |
|
Reverse voltage protection |
Max 3A |
|
Dimensions |
40mm*20mm*65mm |
|
Weight |
100gm |
|
|
Model
AK3S2P-26J |
Price R1012 Incl VAT
|
Features |
|
Nominal Voltage |
11.1V |
|
Capacity |
6000mAh |
|
Max Voltage |
12.6V |
|
Min Voltage |
8.4V |
|
Internal Protection Fuse |
5A |
|
Charge Rate |
Max 3A |
|
Discharge Rate |
Max 2.5A |
|
Short Circuit Protection |
Max 3A |
|
Reverse voltage protection |
Max 3A |
|
Dimensions |
200mm*40mm*20mm |
|
Weight |
300gm |
|
|

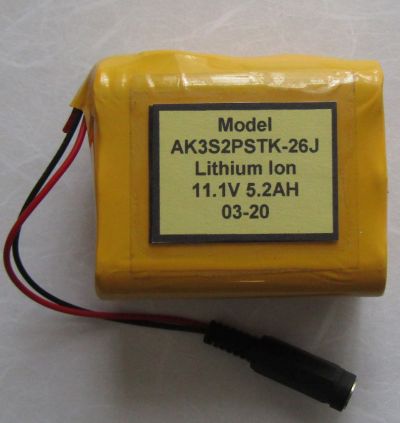

Model
AK3S2PSTK |
Price R1012 Incl VAT
|
Features |
|
Nominal Voltage |
11.1V |
|
Capacity |
6000mAh |
|
Max Voltage |
12.6V |
|
Min Voltage |
8.4V |
|
Internal Protection Fuse |
5A |
|
Charge Rate |
Max 3A |
|
Discharge Rate |
Max 2.5A |
|
Short Circuit Protection |
Max 3A |
|
Reverse voltage protection |
Max 3A |
|
Dimensions |
65mm*60mm*20mm |
|
Weight |
300gm |
|
|

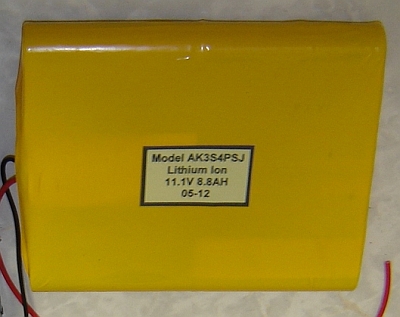

Model
AK3S4P |
Price R1803 Incl VAT
|
Features |
|
Nominal Voltage |
11.1V |
|
Capacity |
9000mAh |
|
Max Voltage |
12.6V |
|
Min Voltage |
8.4V |
|
Internal Protection Fuse |
5A |
|
Charge Rate |
Max 3A |
|
Discharge Rate |
Max 2.5A |
|
Short Circuit Protection |
Max 3A |
|
Reverse voltage protection |
Max 3A |
|
Dimensions |
130mm*120mm*20mm |
|
Weight |
600gm |
|
|

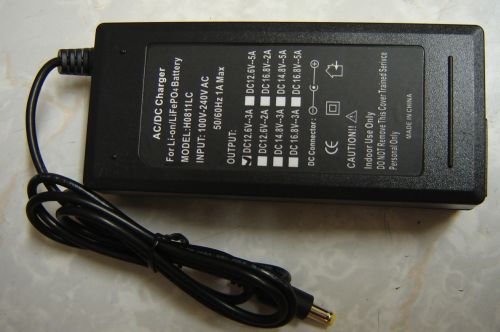

Lithium
ion Battery Chargers |
|
These
lithium ion battery chargers are specifically designed for charging
lithium ion battery packs.. The output voltage rating is designed to
meet the maximum output voltage of the battery pack.. For example a
single lithium ion cell maximum voltage charge is 4.2V. The charger will
charge at 4.2 volts. The charger has an indicator led that is red when
charging and green when the cell is fully charged. It helps to eliminate
the risk of overcharging which could result in cell ignition and fire.
 |
|
Specialist Lithium Ion Battery Charger
Pricing |
|
1 Cell 4.2V
1Ah |
R281 |
|
2 Cell 8.4V
1Ah |
R253 |
|
2 Cell 8.4V 2Ah |
R391 |
|
3 Cell 12.6V
1Ah |
R287 |
|
3 Cell 12.6V
2Ah |
R368 |
|
4 Cell 16.8V 2Ah |
R414 |
|
4 Cell 16.8V 3Ah |
R420 |
|
5 cell 21V 2h |
R368 |
|
5 Cell 21V 3Ah |
R402 |
|
6 Cell 25.2V 2Ah |
R402 |
|
7 Cell 29.4V 2 Ah |
R414 |
|
